Interlab Test Solution Bluetooth RF – Conformance Tester

Interlab Test Solution Bluetooth® RF – Conformance Tester
Complete Bluetooth RF conformance test coverage for all Bluetooth standard versions

The Interlab Test Solution Bluetooth® RF – Conformance Tester setup provides the complete Bluetooth SIG validated RF test coverage for Bluetooth specifications versions 2.0 + EDR, 2.1 + EDR, 3.0 + HS, 4.x and now Bluetooth 5.X, with which the range, speed and broadcast messaging capacity of Bluetooth applications has been increased considerably. The Conformance Tester setup is validated in accordance with Bluetooth SIG requirements, thus meeting Bluetooth Qualification requirements.

Advantages of the Interlab Test Solution Bluetooth RF – Conformance Tester setup

    • provides highest level of automation to speed up repetitive, time-consuming procedures
    • uses advanced Object UnderTest automation techniques, adaptive signaling methods, configurable repeat scenarios
    • comes with an electronic man-machine interface and climatic chamber control option for extreme condition testing
    • helps decrease test duration and minimizes potential testing errors

The Interlab Test Solution Bluetooth RF – Conformance Tester can be delivered with all required hardware built into a rack, or as an upgrade of the R&S TS8960 / TS8965 or Keysight BITE RF Bluetooth RF Testers, with multiple variants available.

Test specifications and requirements covered

Read more

Complete validated RF test coverage in accordance with Bluetooth SIG requirements for Bluetooth standard versions

    • 2.0 + EDR
    • 2.1 + EDR
    • 3.0 + HS
      for applications and use cases requiring higher data throughput
    • 4.X.
      for low power wireless devices
    • 5.X
      increasing range, speed and broadcast messaging capacity

Scope of delivery

Read more

Available Test Case Packages for Bluetooth RF testing

    • Basic Rate
    • Enhanced Data Rate
    • Baseband EDR Timing
    • Low Energy
    • 2MBPS LE
    • Long Range

Further extensions can be developed on request.

Delivery options

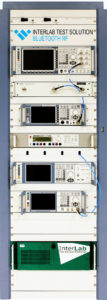

    • Complete Bluetooth RF test system, including all required hardware built into a rack, multiple variants available
    • Upgrade of R&S TS8960 / TS8965 or Keysight BITE RF Bluetooth RF tester, multiple variants available

Benefit from automated, reproducible testing and reliable results

Read more

    • One intuitive, graphical  user interface for selection of test sequences, test groups and repeat scenarios
    • Sophisticated test sequence compilation based on test parameters and test conditions
    • Configurable repeat scenarios
    • High level of automation
    • Automatic control and operation of all involved test equipment
    • Object Under Test automation including initial configuration, test remote control, power cycling
    • Automated execution and termination of external programs e.g. batch jobs, trace tools, triggered by start and end of tests
    • Full automation of test sequences – optional function: uses the remote control (Host Controller Interface) of the Object Under Test, test sequences can be performed without user interaction, thus decreasing test time and errors
    • Control of auxiliary equipment e.g. power supplies or climatic chambers – optional
    • Adaptive connection management
    • Intelligent link re-establishment in case of link loss during lengthy test cases to safeguard already performed measurements
